Performance Gaskets - Dodge Hellcat Supercharger
Friday, February 16th, 2024
Cometic Gasket introduces a specialized gasket tailored for the Dodge Hellcat Supercharger engine, aiming to meet the engine's unique demands and ensure optimal performance.
HELLCAT GEN-3 SPECS
The Dodge Hellcat Supercharger engine stands as a pinnacle of power, boasting a supercharged Hemi V8 engine capable of producing over 700 horsepower and 650 lb-ft of torque. Renowned for its sheer performance capabilities, this engine is a force to be reckoned with on both the street and the track.
Specifications:
- Engine Type: GEN III HEMI® V8
- Displacement: 376 cu in
- Bore: 103.9 mm
- Stroke: 90.9 mm
- Block: Cast Iron Block with 4 Bolt Powder Metal Caps
- Cylinder Heads 356 Aluminum, HEMIspherical Chamber Cylinder Heads
- Intake Valve Size: 54.3 mm
- Compression Ratio: 9.5:1
- Peak RPM: 6200

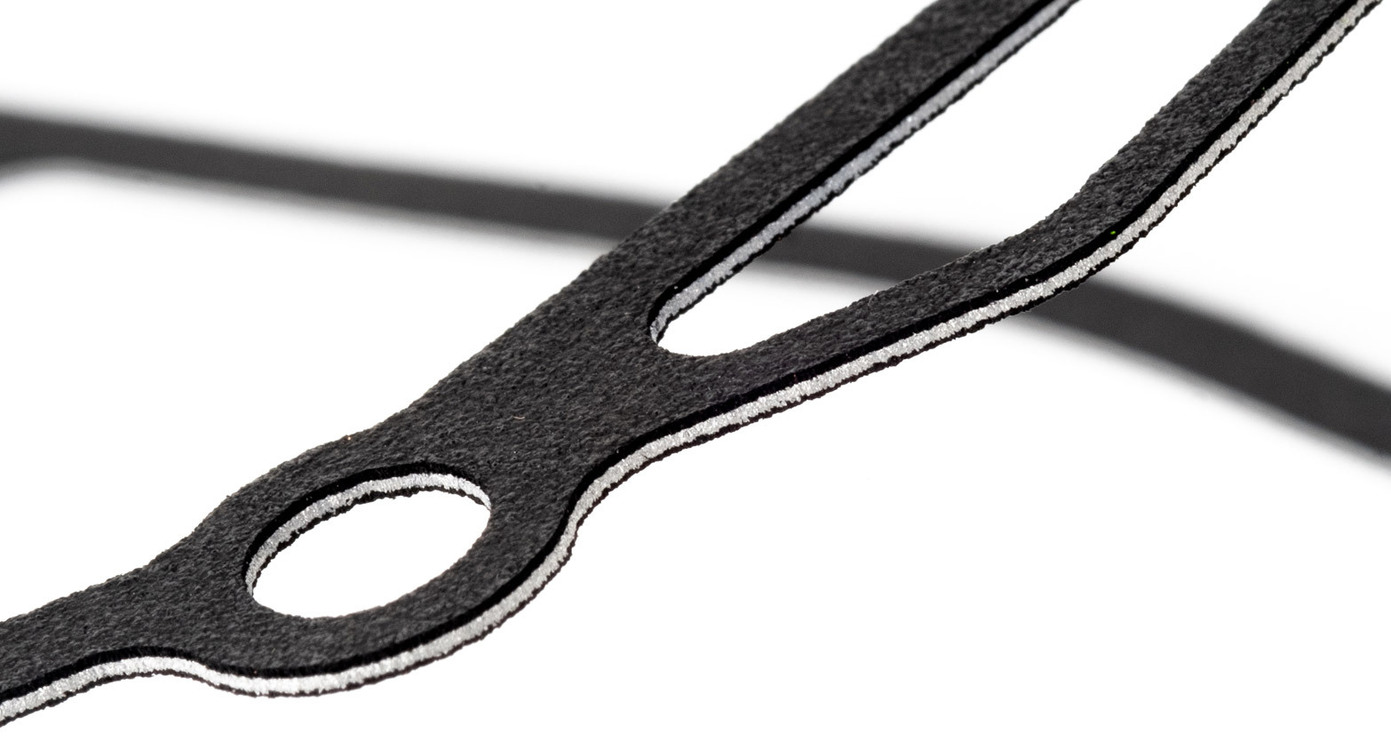

AFM MATERIAL
A chemically blown, compounded nitrile synthetic rubber bonded to an aluminum core with a temperature resistance of over 205* F. AFM material has an 85% recovery while maintaining strong torque retention. AFM does not require sealants or re-torquing. Cometic Gasket's AFM material is known for its durability and resilience, making it ideal for high-performance engines, including those with forced induction systems like superchargers.

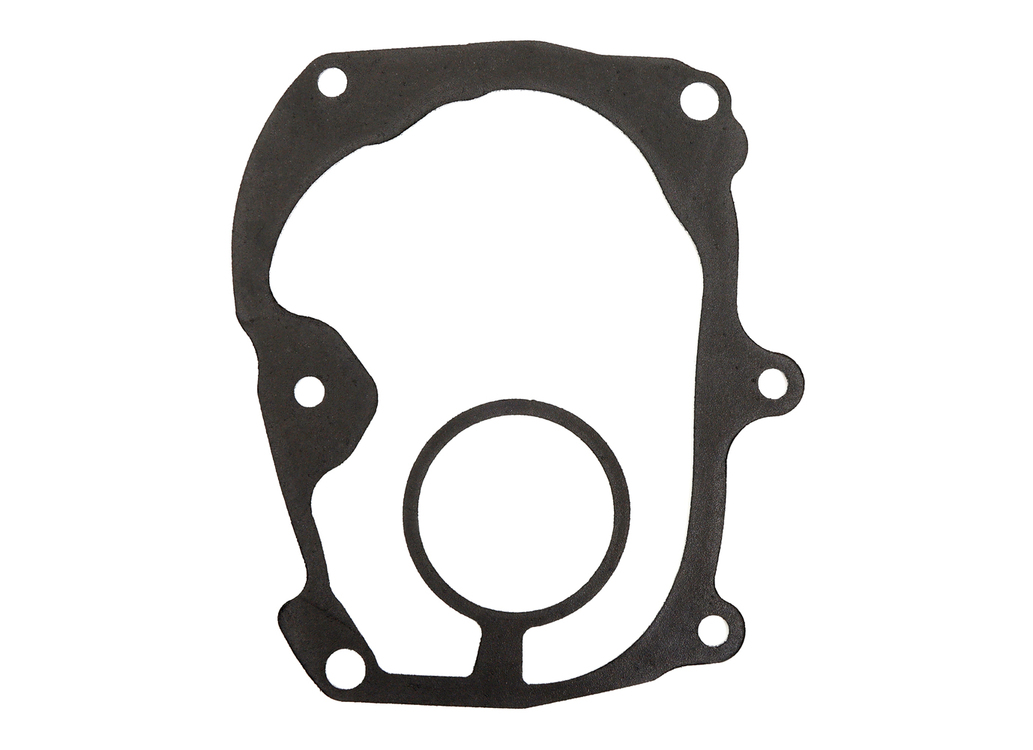

AFM BLOWER SNOUT GASKET
PART NO: C15276
UPC NO: 191070571665
Material: AFM
Compressed Thickness: .060
View Gasket

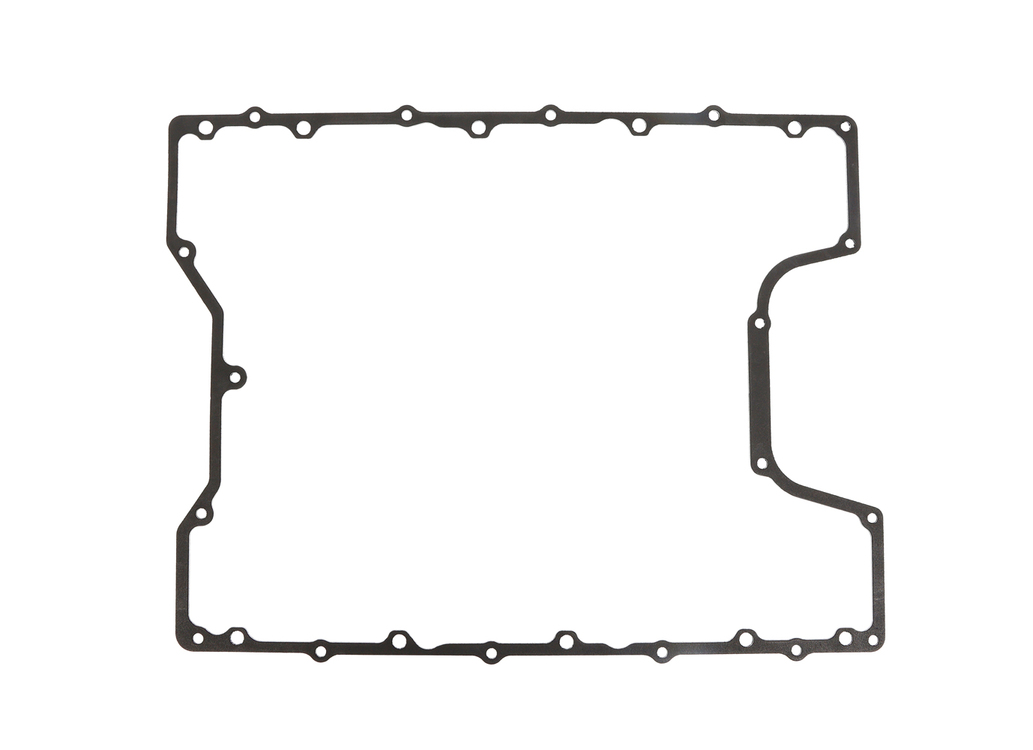

AFM SUPERCHARGER LID GASKET
PART NO: C15553-060
UPC NO: 191070544553
Material: AFM
Compressed Thickness: .060
View Gasket
The specialized gasket from Cometic Gasket offers a range of benefits to enthusiasts of the Dodge Hellcat Supercharger engine. Engineered with precision and utilizing advanced AFM material, it enhances sealing efficiency, mitigates the risk of leaks, and ensures consistent performance levels. With this gasket, Hellcat owners can enjoy peace of mind knowing that their engine is equipped with a reliable sealing solution that can withstand the rigors of high-performance driving, both on and off the track.

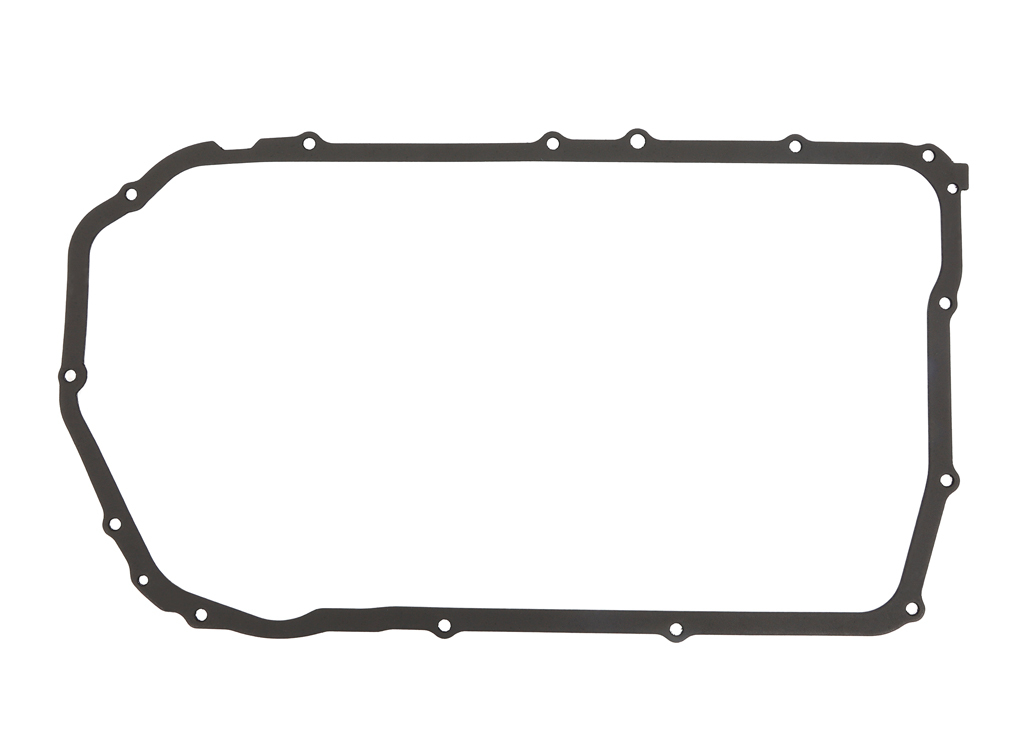

AFM AUTOMATIC TRANSMISSION OIL PAN GASKET
PART NO: C15265
UPC NO: 191070568184
Material: AFM
Compressed Thickness: .075
View Gasket
