Dual Stopper Technology
Thursday, December 11th, 2025
DST represents the next evolution of Cometic’s proven Multi Layer Steel and MLX Stopper gasket designs, developed to meet the growing demands of modern high performance engines. Built for extreme cylinder pressures and aggressive power levels, DST is designed to deliver consistent and reliable sealing where conventional solutions can fall short.

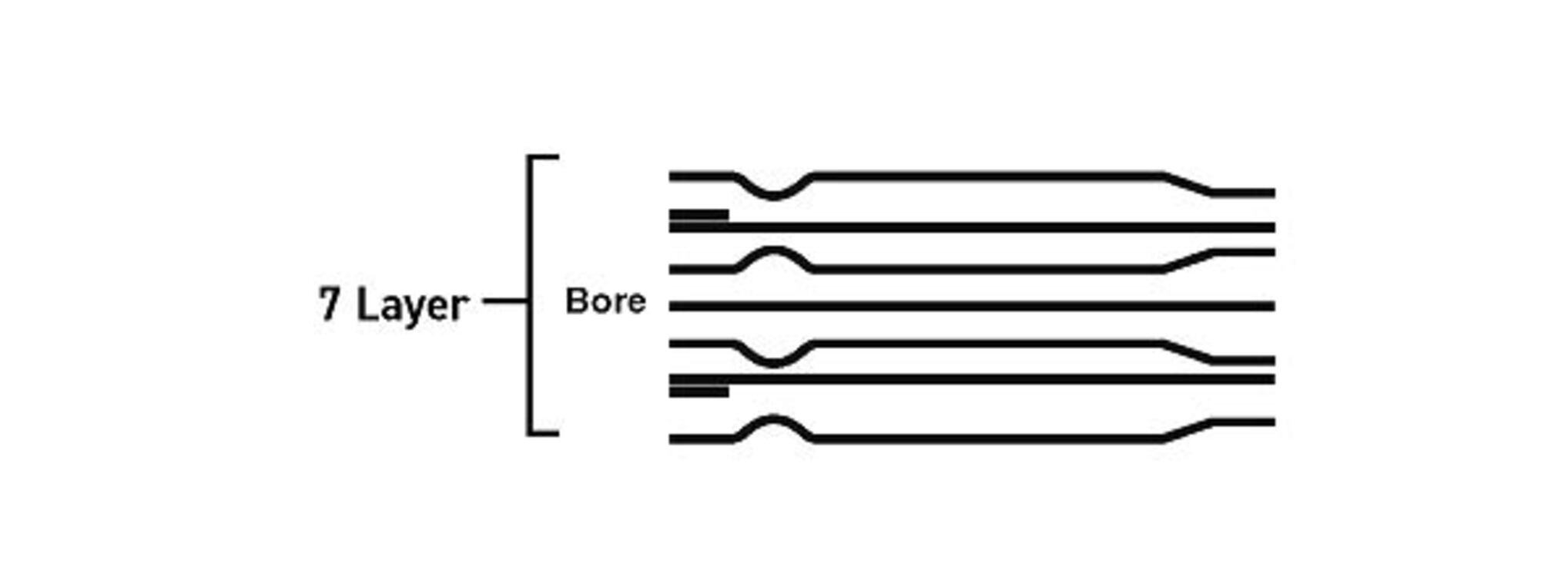

At the core of the DST design is a dual integrated stopper system, featuring precision folded stainless steel stopper layers combined with Cometic’s embossed, proprietary coated sealing layers. This advanced construction creates a uniform and evenly distributed clamping force across both the cylinder head and engine block combustion seal. The result is improved load control, reduced bore distortion, and a significant increase in long term sealing stability under high boost and high temperature conditions.
Left Hand Side (Left) - Right Hand Side (Right)
Unlike traditional solutions that require additional head machining, grooving, or o ring modifications, DST gaskets are engineered as a true direct bolt on solution. This allows builders and engine shops to achieve race level sealing performance without added machine work, saving time while maintaining reliability. Whether used in forced induction street builds or extreme performance applications, DST delivers a precise, durable seal designed to withstand the harshest operating environments.
Current DST Applications:
C15731-063 - CHRY 6.2L HELLCAT LHS 4.150" .063" DST 7 LAYER HEAD GASKET
C15731-071 - CHRY 6.2L HELLCAT LHS 4.150" .071" DST 7 LAYER HEAD GASKET
C15732-063 - CHRY 6.2L HELLCAT RHS 4.150" .063" DST 7 LAYER HEAD GASKET
C15732-071 - CHRY 6.2L HELLCAT RHS 4.150" .071" DST 7 LAYER HEAD GASKET

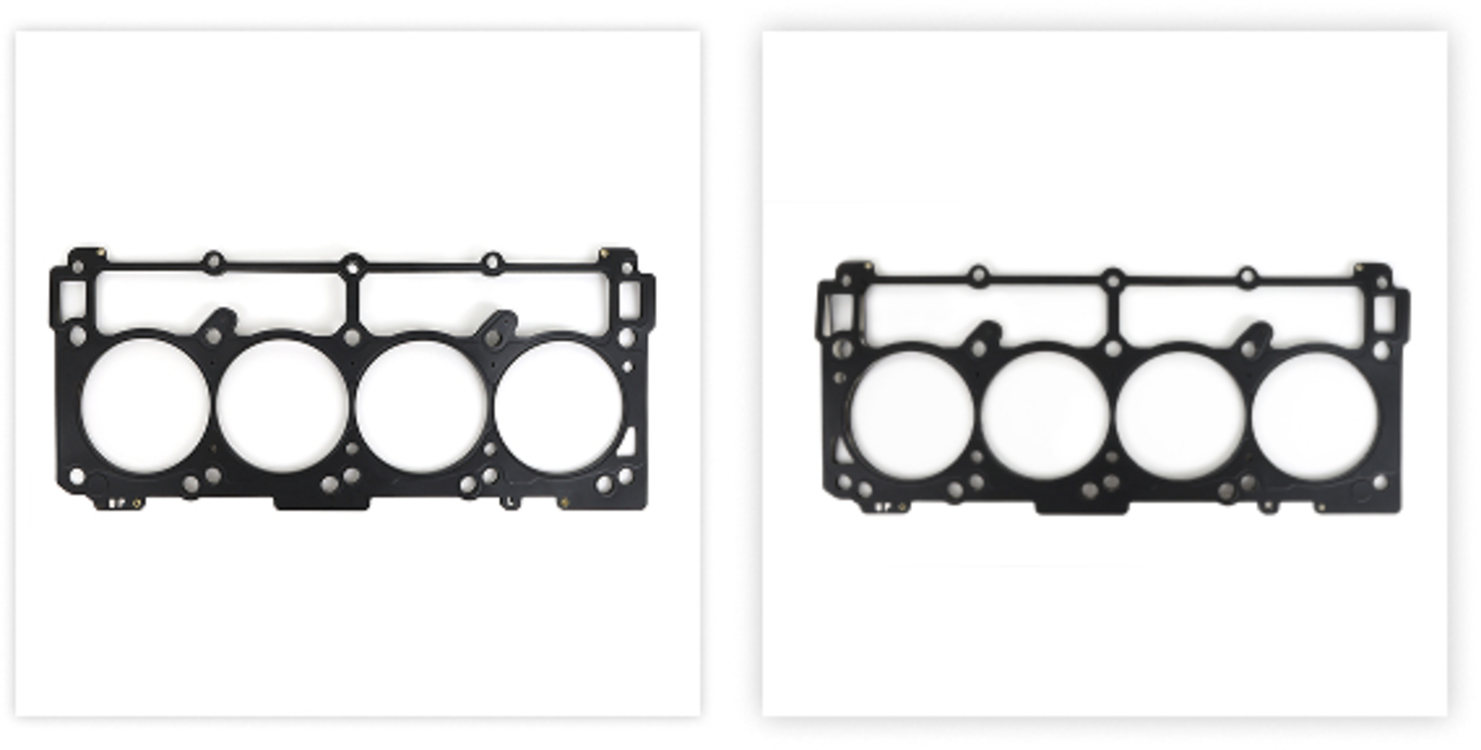

Left Hand Side (Left) - Right Hand Side (Right)
C15738-063 - CHRY DART GEN 3 HEMI LHS 4.150" .063" DST 7 LAYER HEAD GASKET
C15738-071 - CHRY DART GEN 3 HEMI LHS 4.150" .071" DST 7 LAYER HEAD GASKET
C15737-063 - CHRY DART GEN 3 HEMI RHS 4.150" .063" DST 7 LAYER HEAD GASKET
C15737-071 - CHRY DART GEN 3 HEMI RHS 4.150" .071" DST 7 LAYER HEAD GASKET
C15736-063 - CHRY DART GEN 3 HEMI LHS 4.275" .063" DST 7 LAYER HEAD GASKET
C15736-071 - CHRY DART GEN 3 HEMI LHS 4.275" .071" DST 7 LAYER HEAD GASKET
C15735-063 - CHRY DART GEN 3 HEMI RHS 4.275" .063" DST 7 LAYER HEAD GASKET
C15735-071 - CHRY DART GEN 3 HEMI RHS 4.275" .071" DST 7 LAYER HEAD GASKET
C15733-063 - CHRY 7.0L HEMI DRAG PAK LHS 4.180" .063" DST 7 LAYER HEAD GASKET
C15733-071 - CHRY 7.0L HEMI DRAG PAK LHS 4.180" .071" DST 7 LAYER HEAD GASKET
C15734-063 - CHRY 7.0L HEMI DRAG PAK RHS 4.180" .063" DST 7 LAYER HEAD GASKET
C15734-071 - CHRY 7.0L HEMI DRAG PAK RHS 4.180" .071" DST 7 LAYER HEAD GASKET

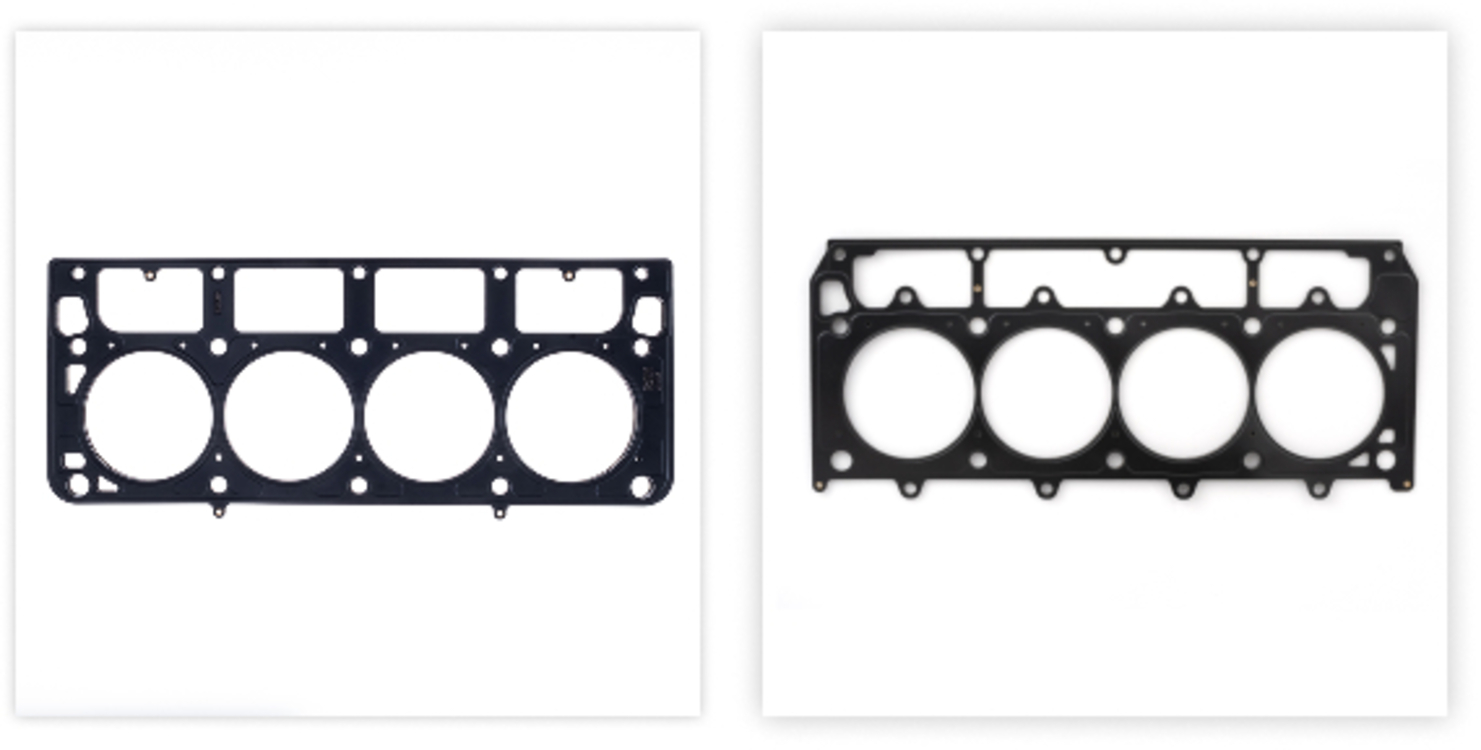

4-Bolt (Left) - 6-Bolt (Right)
C15739-063 - GM LS SERIES 4-BOLT 3.940" .063" DST 7 LAYER 1/2" STUDS HEAD GASKET
C15739-071 - GM LS SERIES 4-BOLT 3.940" .071" DST 7 LAYER 1/2" STUDS HEAD GASKET
C15740-063 - GM LS SERIES 4-BOLT 4.040" .063" DST 7 LAYER 1/2" STUDS HEAD GASKET
C15740-071 - GM LS SERIES 4-BOLT 4.040" .071" DST 7 LAYER 1/2" STUDS HEAD GASKET
C15749-063 - GM LS SERIES 4-BOLT 4.100" .063" DST 7 LAYER 1/2" STUDS HEAD GASKET
C15749-071 - GM LS SERIES 4-BOLT 4.100" .071" DST 7 LAYER 1/2" STUDS HEAD GASKET
C15741-063 - GM LS SERIES 4-BOLT 4.150" .063" DST 7 LAYER 1/2" STUDS HEAD GASKET
C15741-071 - GM LS SERIES 4-BOLT 4.150" .071" DST 7 LAYER 1/2" STUDS HEAD GASKET
C15742-063 - GM LS SERIES 6-BOLT LHS 4.165" .063" DST 7 LAYER 1/2" & 3/8" HEAD GASKET
C15742-071 - GM LS SERIES 6-BOLT LHS 4.165" .071" DST 7 LAYER 1/2" & 3/8" HEAD GASKET
C15743-063 - GM LS SERIES 6-BOLT RHS 4.165" .063" DST 7 LAYER 1/2" & 3/8" HEAD GASKET
C15743-071 - GM LS SERIES 6-BOLT RHS 4.165" .071" DST 7 LAYER 1/2" & 3/8" HEAD GASKET
C15745-063 - GM LS SERIES 6-BOLT LHS 4.200" .063" DST 7 LAYER 1/2" & 3/8" HEAD GASKET
C15745-071 - GM LS SERIES 6-BOLT LHS 4.200" .071" DST 7 LAYER 1/2" & 3/8" HEAD GASKET

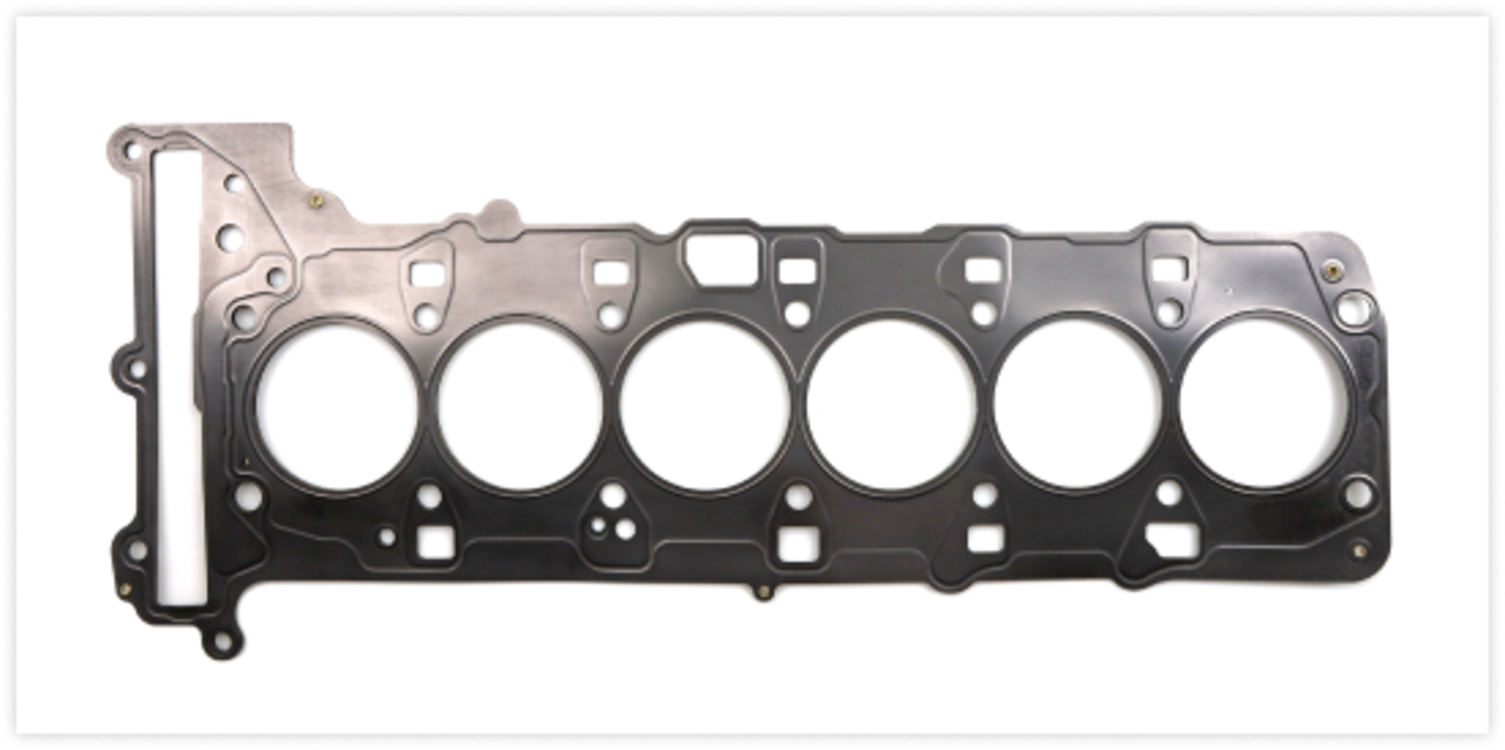

BMW 2019+, Toyota 2020+ B58TU Gen 2 .063" DST Cylinder Head Gasket, 83mm Bore
C14208-063 - TOY / BMW B58TU 3.0L "GEN 2" 2020-25 83MM .063" DST 7 LAYER HEAD GASKET
C14208-071 - TOY / BMW B58TU 3.0L "GEN 2" 2020-25 83MM .071" DST 7 LAYER HEAD GASKET
C14207-063 - BMW S58 B30 3.0L 2019-UP 85MM .063" DST 7 LAYER HEAD GASKET
C14207-071 - BMW S58 B30 3.0L 2019-UP 85MM .071" DST 7 LAYER HEAD GASKET
